Oil Fracturing proppant 40/70
Ceramic Proppants are high strength proppants that allow effective hydraulic fracturing under the hostile conditions.
- Model： AIO 510-23
Product Description of ceramsite proppant:

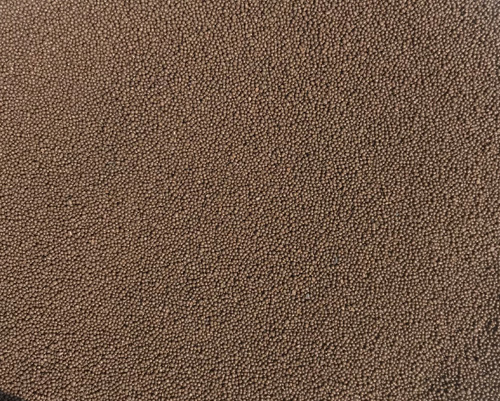

AYC Ceramic Proppants are widely used in the construction of deep well fracturing. Ceramic Proppants are high strength proppants that allow effective hydraulic fracturing under the hostile conditions. Proppants are spherical ceramic beads made of natural bauxite materials, and fired at very high temperatures enabling them to maintain their integrity under high temperature and closure stress.
Oilfield service companies fracture a well involving pumping a fracturing fluid containing proppant into a well and into an oil or gas reservoir generally using high rate and pressure. Pumping continues until fractures are initiated and desired fracture geometry is achieved. The proppants, which are suspended in the fracturing fluid, are injected into the fractures in the rock to prop these fractures open after the fracture fluid is recovered. The resulting proppant pack provides a highly conductive pathway for fluids to flow from the reservoir into the wellbore.
With these Ceramic Proppants, the conductivity of oil and gas can be highly improved.Applications: For the oil and natural gas industry,used during the hydraulic fracturing process to enhance productivity.
Fracturing resistance intensity : 52 Mpa, 69 Mpa, 86 Mpa .
Chemical / Physical Spec of ceramsite proppant:
Mesh Size | Bulk Density (g/cm3) | Apparent Density (g/cm3) | Close Pressure (Mpa) | Percentage of Crushing(%) | Sphericity Roundness | Turbidity |
20/40 Mesh | 1.65-1.85 | 3.25 Max | 52 | 4 Max | 0.9 Min | 60 Max |
1.65-1.85 | 3.25 Max | 69 | 6 Max | 0.9 Min | 60 Max | |
1.65-1.85 | 3.25 Max | 86 | 9 Max | 0.9 Min | 60 Max | |
30/50 Mesh | 1.65-1.85 | 3.25 Max | 69 | 5 Max | 0.9 Min | 60 Max |
1.65-1.85 | 3.25 Max | 86 | 8 Max | 0.9 Min | 60 Max |
